The height of the side door can be adjusted according to your needs. The sidewall trailer is applicable to ship farm products, minerals and construction materials. Side door lock's flexible mechanism is convenient for loading and unloading. This design is beneficial to the stable and durable side door. The risk of the cargo leaking in the course of transport is lower.
1. Axles with High load capacity
The sidewall trailer employs three 16 ton Titan axles. The 3-axle structure helps the sidewall semi trailer to meet all kinds of heavy loads. The optimized axle layout is reliable to improve the stability of sidewall trailer. The sidewall semi trailer has enhanced adaptability to various conditions on the road. On bumpy roads, a sidewall semi trailer is able to keep a good grip. The sidewall semi trailer enables the safe and sound arrival of the cargo.

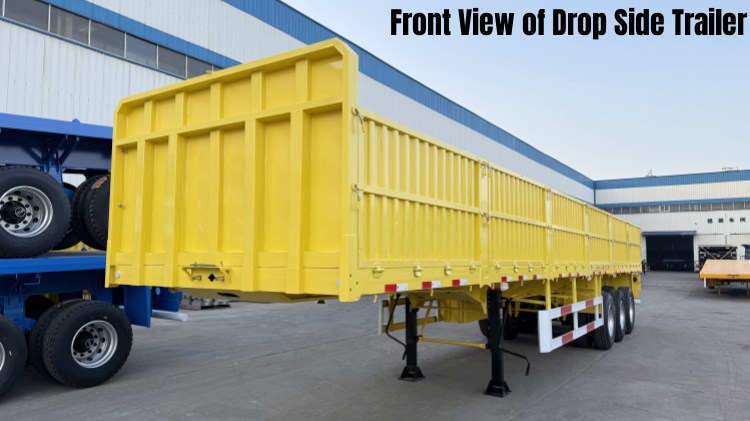

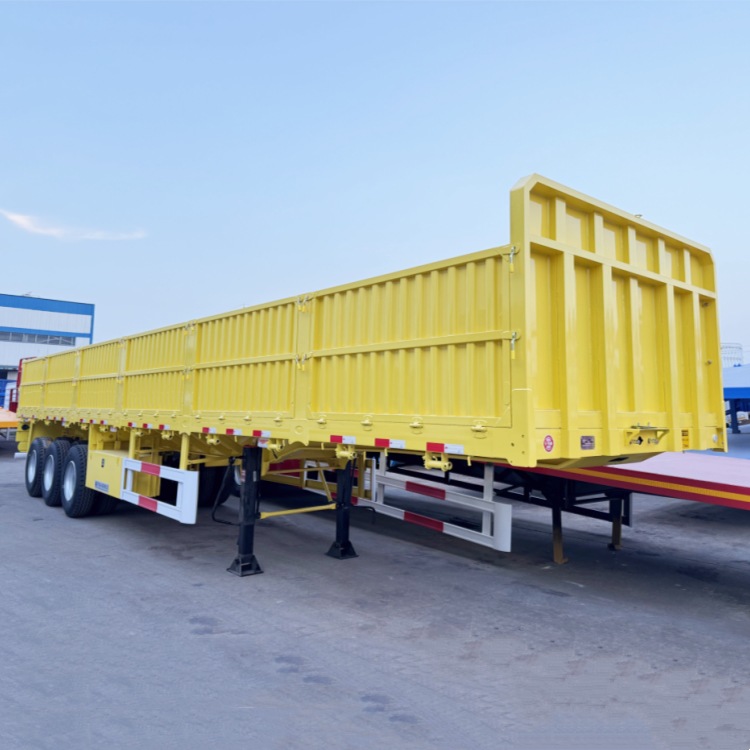

Sidewall Semi Trailer Side Walls in Mozambique
Sidewall Semi Trailer Side Walls in Mozambique
Sidewall Semi Trailer Side Walls in Mozambique
Sidewall Semi Trailer Side Walls in Mozambique
Sidewall Semi Trailer Side Walls in Mozambique
Dimension(mm): 12500x2500x3260mm
Trailer Sides: 1200mm
Loading capacity(ton): 60T
Axles: 3 axles, TITAN Brand
Tire: 12 units, 12.00R22.5
Suspension: Mechanical suspension
Main Beam :500mm Height, 8mm Thick, 140mm Width
Side Beam: 160mm Width
King Pin: 70mm
Though Beam: 6 sets
Distance of Inclined Support : ≤500mm
Brake Pad Width: 220mm
Bottom Plate: 3mm Anti-slip Plate
1. Bottom plate
Wear-proof material
High-strength steel plate base plate enhances abrasion resistance. The 3 mm base is easy to prolong the service life of sidewall trailer side walls. Anti-slip pattern is vital to guarantee cargo stability. It's helpgul to reduce cargo sliding on sidewall trailer side walls. Flexible side door is more convenient for traffic.
2. Oblique support
Increase structural strength
The distance of the inclined support shall not exceed 500 mm. The inclined support is designed to improve the structure stability of sidewall semi trailer.
Avoid shaking
The optimized design is effective to enhance the cargo stability after loading. It is powerful to reduce the shaking in the course of transportation. Safety of transport is achieved by source.
3. Spare tire rack
Convenient and practical
The sidewall trailer side walls owns a special spare tire rack. The utility model improves the convenience of storage and removal of spare tires. The location of the spare tyre rack has been taken into consideration. It doesn't take up a lot of space in the car. And it can be easily taken at any time.
Increase security
The spare tyre is firmly attached to sidewall trailer side walls. In this way, the spare tire will drop in the course of transportation.
4. Lengthened suspension ribs
Improve suspension performance
The extended design of the suspension ribs is benificial for the pressure resistance. It makes sidewall semi trailer adaptable to different load conditions. It is also helpful to improve riding comfort.
Prolong Service Life
Reinforcing measures are professional to enhance the durability of suspension. It brings more economic benefits to car owners by decreasing the frequency of repairs.
5. 10 leaf springs
Increased load carrying capacity
The 10 leaf spring design gives sidewall semi trailer a stronger load bearing capacity.
Improved driving comfort
The flexible leaf spring makes sidewall semi trailer comfortable on bumpy roads. The unique leaf spring reduces the damage to cargo and the vehicle itself. The efficiency and security of loading and unloading are ensured.
6. Automatic adjusting arm
The automatic adjusting arm is charge of adjusting in accordance with the load. The automation design is reliable to lower the risk of manual operation errors. The operating efficiency of the sidewall trailer side walls is enabled.
